SP10024

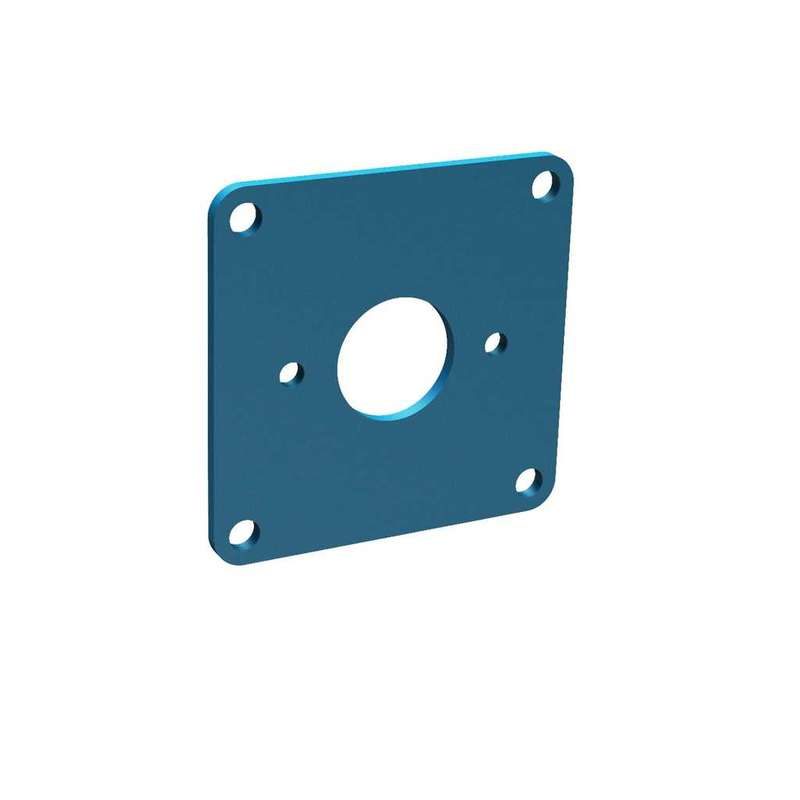

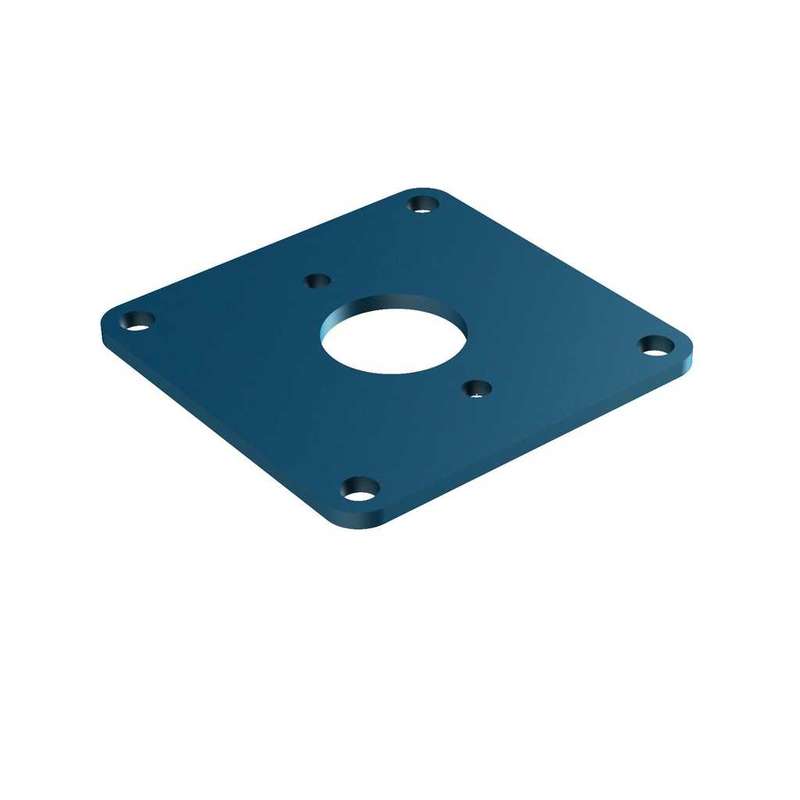

Flat rectangular mounting plate with rounded corners and a central hole. Additionally, it contains six more holes, four of them located at plate corners, and the other two located at central plate area each one at each side of the central big hole (center-aligned).

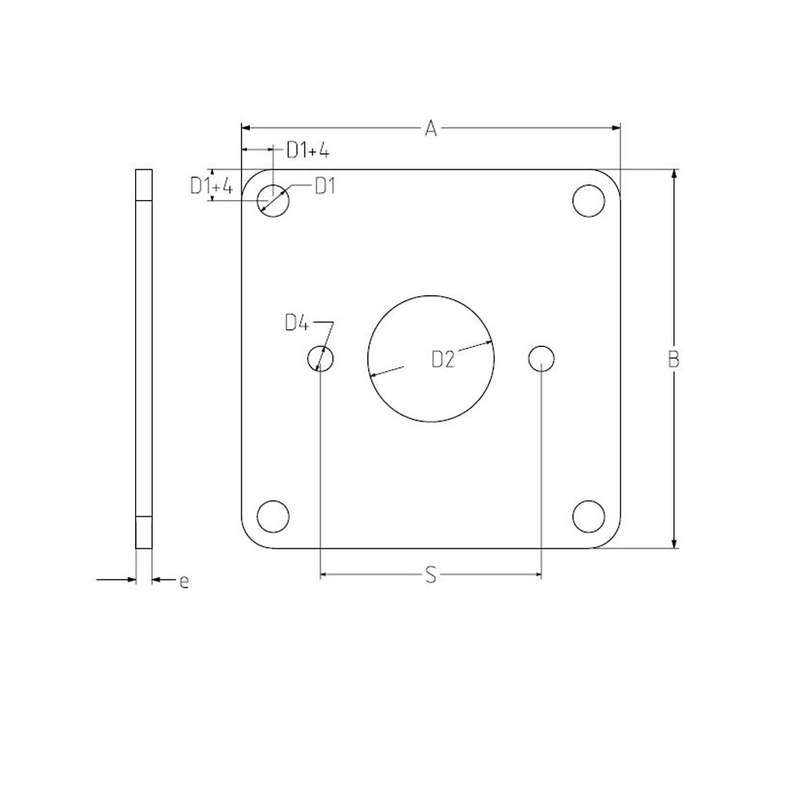

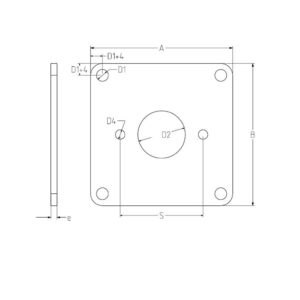

General plate and holes dimensions, corners radius and the two central holes distances are configurable.

Material, thickness and surface finish are also configurable.

See available options in the product configuration form.

ALL DIMENSIONAL VALUES MUST BE INTRODUCED IN MILLIMETERS (mm)

Complete form fields in the order they appear (top to bottom, starting with “Material”)
